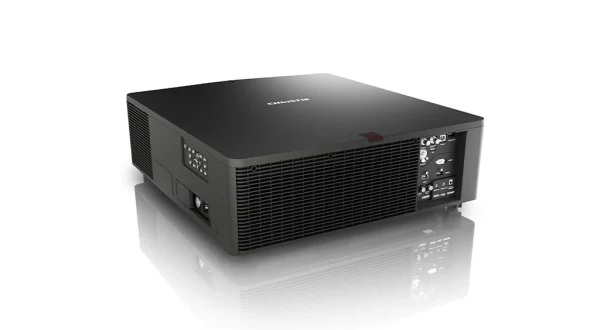

Christie 4K22-HS - Image 1
Christie 4K22-HS - Image 2
Christie 4K22-HS - Image 3
Christie 4K22-HS - Image 4
Christie 4K22-HS - Image 5
Christie 4K22-HS - Image 6

Christie 4K22-HS

Christie 4K13-HS
Christie M4k15
0 out of 5
( There are no reviews yet. )

22,500

ISO lumens

19,000

ANSI lumens

3 Segment (RGB) – 4X speed

Color wheel

4,000,000:1 with Christie RealBlack™ *

Contrast ratio

6,000:1

Dynamic contrast

1 x 0.95″ DMD

Display type

Resolution

4K UHD (3840 x 2160)

Illumination type

Laser phosphor with Christie BoldColor+™ technology utilizing a blue and a red laser

Illumination performance (hrs)

20,000 hours to 50%

Scan rates

Horizontal: 15-91kHz Vertical: 24-240Hz

Pixel clock rate

600MHz

Signal i​nputs

  • Standard:
  • HDMI 2.0b x 2 (HDCP 1.4/2.2) (one on rear panel, one on bottom)
  • 12G-SDI x 1 (BNC)
  • – DP x 1
  • – USB x 1 (Type A)
  • – HDBaseT (RJ45) x 1

3D inputs

  • – HDMI 1.4, HDBaseT – frame packed, top/bottom, side-by-side (up to 120Hz output); frame sequential @1080p up to 120Hz
  • – 3D sync in (BNC) – for genlocking projectors
  • – 3D sync out (BNC) – for genlocking projectors, or controlling emitter or polarizer
  • – Active shuttered and passive polarized stereoscopic 3D

Signal outputs

  • – 12GSDI x 1 (BNC)
  • – HDMI x1 (HDMI out)

Control and networking

  • – HDBaseT (RJ45 x 1)
  • – RJ45 x 1 (Ethernet Control over wired network connection)
  • – RS232 x 1
  • – Remote in: 3.5mm stereo female (provides serial communications and power)
  • – Loop out available for daisy chaining
  • – DC JACK 12VDC, 200 mA

Warpin​g and blending

  • Standard:
  • – Christie Twist™
  • Optional:
  • – Christie Twist Premium and Twist Pro
  • – Christie Mystique™ automated camera-based alignment

Lens mount

  • – Boresight adjustable
  • – Motorized horizontal and vertical lens offset (memory available)
  • – Motorized zoom and focus adjustment (memory available for full ILS lenses)

Lens options

  • – 0:38:1 UST lens
  • Zoom/focus memory:
  • – 0.65-0.75 zoom lens
  • – 1.2-1.5:1 zoom lens
  • – 1.5-2.0:1 zoom lens
  • – 2.0-4.0:1 zoom lens
  • – 4.0-7.0:1 zoom lens
  • – 7.2-10.8 zoom lens
  • No zoom/focus memory:
  • – 1.02-1.36:1 zoom lens

Offsets for 0.38:1 UST lens

  • – +100/-55% Vertical
  • – +4/-28% Horizontal

Offsets for 1.02:1-1.36:1

  • – +124/-98% Vertical
  • – +40/-49% Horizontal

Offsets for full ILS Lenses

  • – ±140% Vertical
  • – ±50% Horizontal

Power requirements

  • Operating voltage:
  • Normal mode: 100-240 VAC @ 50/60Hz
  • Supports 100-120 VAC @ reduced power with 80% brightness level output
  • Power consumption:
  • Normal mode: 1,553W
  • Eco1 mode: 1,281W
  • Eco2 mode: 806W
  • Operating current:
  • Normal mode: 8.5A (220-240 VAC) | 13.5A (100-120 VAC)

Dissipation

  • @220V:
  • – Normal mode: 5,295 BTU/hr
  • – Eco1 mode: 4,368 BTU/hr
  • – Eco2 mode: 2,748 BTU/hr

Audible noise

  • – Standard mode: 45dBA, Eco2 mode: 42dBA

Dimensions (L x W x H)

  • – 26.65 x 23.46 x 7.99″ (677 x 596 x 203mm) without feet

Weight

  • 95.9lbs (43.5kg)

Shipping dimensions (L x W x H)

  • 37.99 x 31.30 x 14.37″ (965 x 795 x 365mm)

Shipping Weight

  • 124.3lbs (56.4kg)

Operating environment

  • – Temp: 0 to 40 C (32 to 104 F)
  • – Humidity: 10 – 85% non-condensing

Regulatory

  • – This product conforms to all relevant European directives, standards, safety, health and environmental concerns
  • – Directives: RoHS, REACH, WEEE
  • – Contact Christie for the timing of certifications: UL/CSA/IEC 60950-1 FCC Class A cTUVus CE FDA CCC KC PSE EAC BIS VCCI RCM Mexico BSMI
Category:
Add to wishlist

Description

When you’re looking to stand out from the crowd with bright, impressive visuals and you don’t want to blow your budget, the 22,500-lumen, high-performance Christie® 4K22-HS is the perfect fit.

Your audience will enjoy incredible brightness and resolution, plus enhanced color performance from the brightest 4K UHD 1DLP® projector on the market. The 4K22-HS delivers deeper blacks and more natural and realistic onscreen visuals thanks to Christie BoldColor+™ technology.

Using onboard Christie Twist™ warping and blending, you can quickly and easily set up and align irregular screens and multi-projector displays. The option to add Christie Mystique™ automated camera-based alignment software lets you quickly stage, install, align, and recalibrate multi-projection systems in minutes.

And as if that wasn’t enough, the 4K22-HS comes with a 5-year warranty and supports active and passive polarized 3D right out of the box.

Key features

  • High brightness– The first 4K UHD 1DLP projector on the market with 22,500 ISO lumens/19,000 ANSI lumens
  • Premium color – Christie BoldColor+ gives audiences enhanced color performance—with deeper blacks and more natural and realistic onscreen visuals.
  • Warping and blending – Make setup even easier with proprietary Christie Twist built-in for quick and easy setup of multi-projector displays
  • RealBlack™ technology – Produces the deepest possible black on-screen by completely turning off the laser light when displaying black scenes.
  • Compatible with Christie Mystique automated camera-based alignment and recalibration software that lets you quickly install, align, calibrate, and maintain multi-projection systems
  • Compatible with Christie Intelligent Camera (CIC) – Use CIC to trigger autofocus, automatically calibrate projector color, optimize color uniformity, and more
  • Advanced electronics deliver high frame rates for 4K UHD at 60 Hz and 1080p at 240 Hz
  • HDBaseT solution – Supports HD video streaming through RJ45
  • AMX and Crestron connectivity – For enhanced collaboration and easy integration into virtually any existing boardroom
  • Support for active and passive polarized 3D provides additional versatility
  • Full suite of lenses – Compatible with WUXGA HS Series lenses* including 0.65:1 to 10.8:1 and a 0.38:1 UST lens
  • Quiet operation – As low as 42dBA
  • Eco Mode – Reduces brightness to 50%, significantly extending the lifetime of your projector, and results in quieter operation
  • Full-range voltage support (100 to 240 VAC)– The system dims to 80% brightness when it detects 100-120 VAC power

*The 4K22-HS is not compatible with the WUXGA 0.84-1.02:1 short zoom lens.

* 35dBA in Eco2 mode (2x wheel speed) and 39dBA in standard mode (3x wheel speed).
